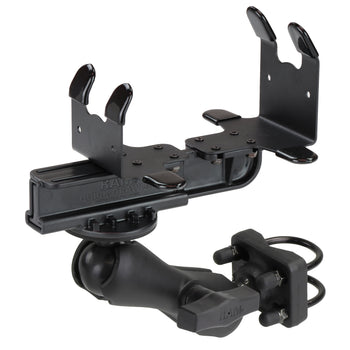

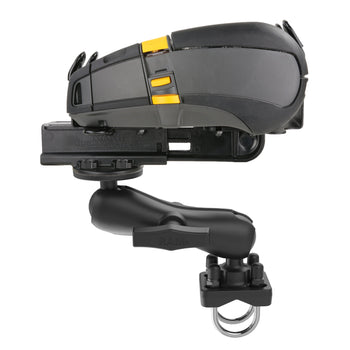

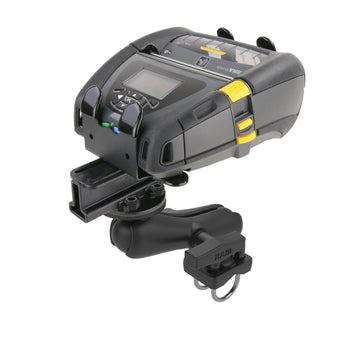

RAM® Vehicle Pole Mount for Mobile Printers with Rear Feed
Part#:RAM-VPR-107-1 UPC:793442011306 Patented
Ball Icon C SIZE
Arm Icon MED ARM
2 279 kr
  • Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra, Intermec or Printronix printer (check compatibility section)
  • Double U-bolt base is compatible with rails and bars ranging from 1.25" to 1.5" in diameter
  • Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM-VPR-107-1 uses a unique spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM® Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
holder dimensions

Max Height: 2.5" (tall side)
Max Height: 1.75" (short side)
Width Range: 6.125" - 10"
clamp range

1.25" - 1.5" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Powder coated steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

1.043 kg

Consists of

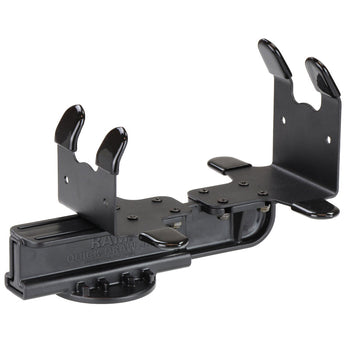

RAM® Printer Cradle for Portable Printers with Rear Paper Feed RAM-VPR-107
969 kr
RAM® Double U-Bolt Rail Mount for Larger Rails RAM-101U-235-1
Ball Icon C SIZE
Arm Icon MED ARM
1 359 kr
