Build your mount
RAM® No-Drill™ Ball Mount for '12-24 RAM 2500-5500 + More
RAM® No-Drill™ Ball Mount for '12-24 RAM 2500-5500 + More
C SIZE
LONG ARM
6 489 kr
- Custom vehicle mount designed specifically for 2012-2024 Ram 2500-5500 trucks
- Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
- Ball and socket mounting system offers shock and vibration damping
- Compatible with any RAM® holders or GDS® docks with a 4 hole AMPS pattern
- Backed by a lifetime warranty

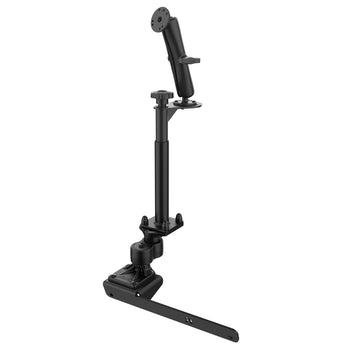

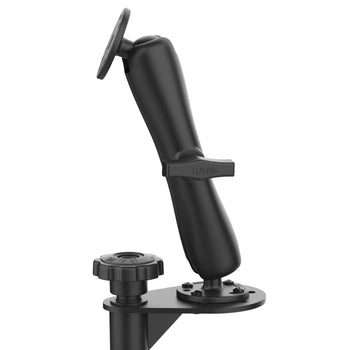

The RAM® No-Drill™ Ball Mount for '12-24 RAM 2500-5500 + More (RAM-VB-178A-DB2) installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. The 3-part ball and socket system attached to the pole is compatible with a variety of device holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.
| hardware included |
Assembly Hardware |
| socket to socket length |
8" |
| hole pattern |
Seat Bolt Distance: 13.25" center to center |
| plate size |
2.5" Diameter |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Powder coated steel |
| packaging type |
Box |
| Weight |
5.455 kg |
| Additional Information |
This kit is intended to support tablets and not laptops. Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)
|
Consists of
1500 (2012-2018)
1500 Classic (2019-2023)
2500 - 5500 (2012-2024)
