GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5
Part#:RAM-GDS-U1-SAM90-KIT5 UPC:793442023415
Ball Icon C SIZE
Arm Icon SHORT ARM
7 909 kr

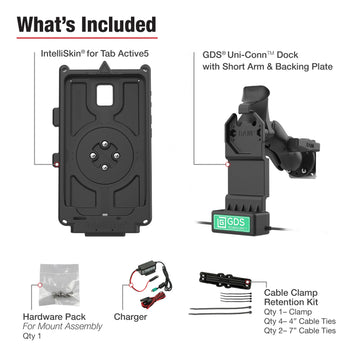

  • Bundle includes the GDS® Uni-Conn™ dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with short arm, backing plate adapter, and cable clamp
  • Dock features GDS® Technology™ for charging and data sync capabilities one USB-C port connects to power and one USB-C port connects one input device
  • Uni-Conn™ dock features an easy device insertion and removal
  • Backed by a 3-year warranty

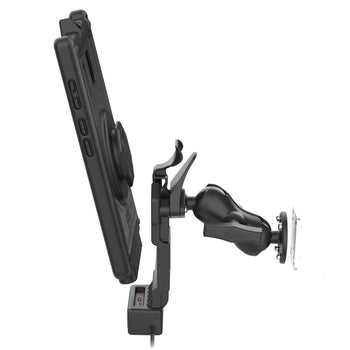

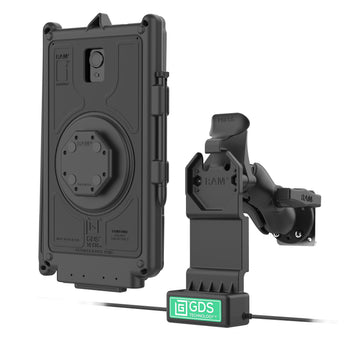

The GDS® Uni-Conn™ Vehicle Bundle + USB-C & USB-A for Samsung Tab Active5 (RAM-GDS-U1-SAM90-KIT5) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS® Uni-Conn™ dock, Uni-Conn™ adapter, IntelliSkin® for the Tab Active5, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-A pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin®-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS® Uni-Conn™ is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Box
output voltage

5V - 12V @ 3A max
power output

15W
input connector

USB Type-C (Power In)
input cable length

215mm
output connector

(1) USB Type-C & (1) USB Type-A (Peripheral)
output cable length

215mm
peripheral output

900mAh (per port)
Warranty

3 year warranty
Weight

0.0 kg

Consists of

IntelliSkin® Next Gen for Samsung Tab Active5 RAM-GDS-SKIN-SAM90-NG
1 749 kr
GDS® Uni-Conn™ Adapter for IntelliSkin® RAM-GDS-U1U
329 kr
Sold out
GDS® Uni-Conn™ Powered Dock with Dual USB-A & USB-C Data RAM-GDS-DOCK-U1CP-CAU
3 169 kr
Sold out
RAM® Double Ball Mount with Diamond Plate Adapter - Short RAM-138U-B
Ball Icon C SIZE
Arm Icon SHORT ARM
1 109 kr
Sold out
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C RAM-GDS-CHARGE-V7CU
769 kr
GDS® Cable Clamp for USB Type-A Cables RAM-GDS-CAB-CLAMP2U
139 kr
