GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter
Part#:RAM-GDS-DOCK-U3EU UPC:793442025587
4 639 kr
logo icon

Powered by

Notify Me!
  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Backed by a 3-year warranty

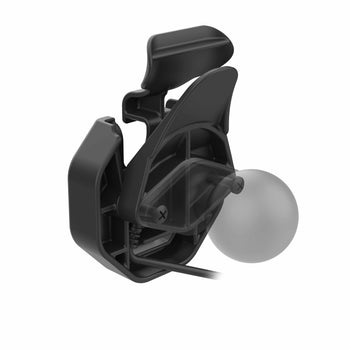

The GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter(RAM-GDS-DOCK-U3EU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®

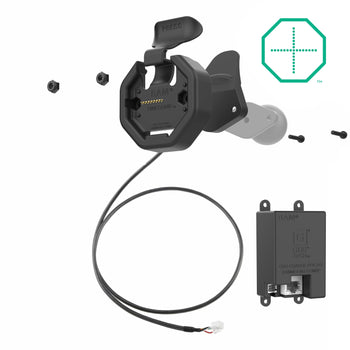

hardware included

(1) Lever Stop
(1) RAM® PoE to PD Charging Module
(2) #8-32 x 1.125" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.7A
power output

20W Max
input connector

JST Connector
input cable length

800mm
Warranty

3 year warranty
Weight

0.0 kg
Additional Information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.

Consists of

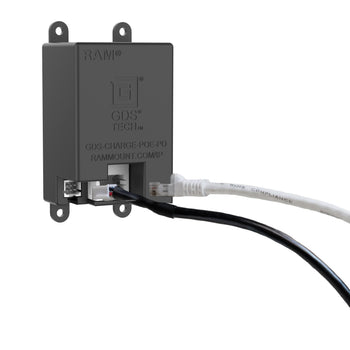

RAM® PoE to Power Delivery Charging Module with JST & RJ45 RAM-GDS-CHARGE-POE-PDU
2 989 kr
Sold out
