GDS® Tough-Dock with Multi-Mode for Tab Active4 Pro & Tab Active Pro
Part#:RAM-GDS-DOCK-SAM54N-MMU UPC:793442019838
4 789 kr
logo icon

Powered by

Notify Me!
  • Multi-mode allows for centralized AI software systems to access tablets when docked

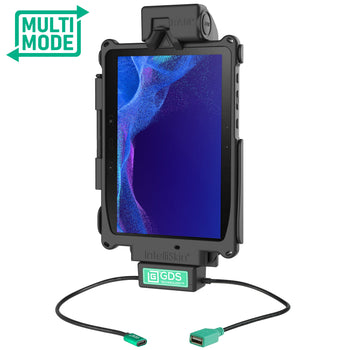

  • Designed specifically for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve

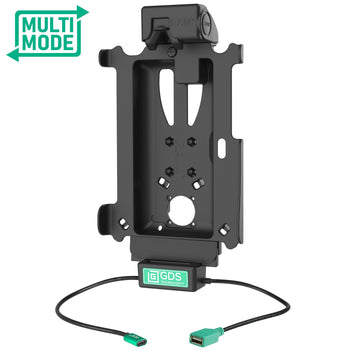

  • Integrated pogo pin connectors provide high speed charging to devices via integrated USB Type-C Female connector
  • RAM® Mounts Compatible including RAM® NFC Extender and GDS® Hand-Stand Hand Strap and Kickstand
  • Backed by a 3-year warranty

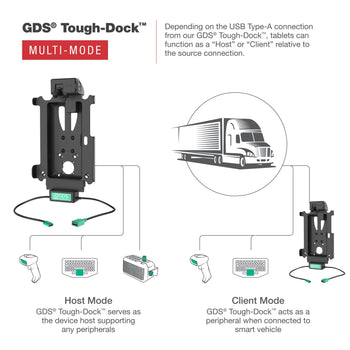

The GDS® Tough-Dock for Tab Active4 Pro & Tab Active Pro with Multi-Mode (RAM-GDS-DOCK-SAM54N-MMU) is a vehicle dock designed to support the Samsung Galaxy Tab Active4 Pro and Tab Active Pro in an IntelliSkin® Next Gen protective sleeve for your fleet. Mutli-Mode is integrated into the dock allowing centralized AI systems to perform as the host instead of the tablet, turning your IntelliSkin®-wrapped tablet into a peripheral. There is no button or switch that turns this function on and off — Multi-Mode is automatically activated when the device is docked. Using a USB Type-C power connector, the GDS® Tough-Dock supports high speed charging capabilities for the Galaxy Tab Active4 Pro and Tab Active Pro. The GDS® Tough-Dock is designed with housing that accomodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected.®

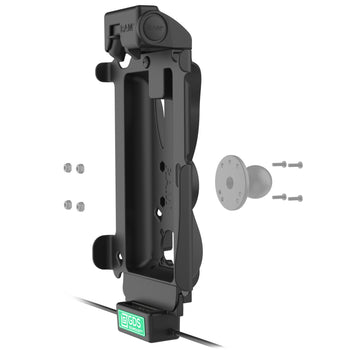

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp with Zip Ties
(1) USB Type-C to Type-A Cable

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 12V @ 3A max
Peripheral: 5V @ 900mA max

power output

15W

input connector

USB Type-C
USB Type A for 1 Peripheral

output cable length

215mm

peripheral output

500mAh

Warranty

3 year warranty

Weight

0.655 kg

Additional Information
This product will not support the "No Battery Mode" function of the Tab Active4 Pro. To support "No Battery Mode", see RAM® Tough-Case options here.

Galaxy Tab Active Pro with IntelliSkin® Next Gen

Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
