GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7
Part#:RAM-GDS-101B2-SAM80-PTT1U UPC:793442019104
Ball Icon C SIZE
Arm Icon SHORT ARM
13 199 kr

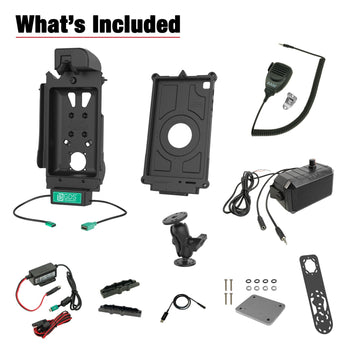

  • Bundle includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps
  • Features Push-To-Talk capabilites via GDS® Audio™ Amplified Speaker with PTT breakout feature
  • Dock features GDS® Technology™ for charging capabilities uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

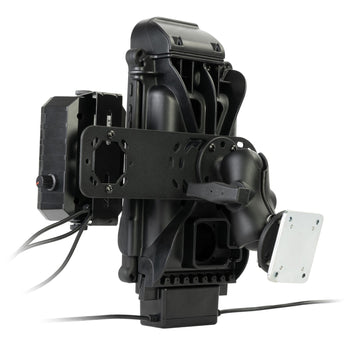

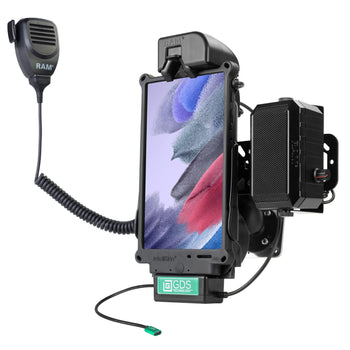

The GDS® Tough-Dock™ Universal PTT Vehicle Bundle for Tab A7 Lite 8.7" (RAM-GDS-101B2-SAM80-PTT1U) is a vehicle dock designed to support the Samsung Galaxy Tab A7 Lite 8.7" in an IntelliSkin® Next Gen protective sleeve and provide push-to-talk capabilities, ideal for fleets of vehicles. The GDS® Tough-Dock™ uses a USB Type-C power connector to support high speed charging capabilities for the Tab A7 Lite and a single USB Type-A peripheral connector for the RAM® microphone. This turnkey solution includes the GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", GDS® Modular 10-30V Hardwire Charger, C Size double ball mount with short arm, backing plate adapter, bracket adapter, audio adapter cable (3.5mm to USB Type-A), GDS® Audio™ amplified speaker, RAM® microphone, and cable clamps. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Box
output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Peripheral: 5V @ 900mA max
power output

15W
input connector

USB Type-C
USB Type A for 1 Peripheral
input cable length

215mm
output cable length

215mm
Weight

2.901 kg

Consists of

IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7” RAM-GDS-SKIN-SAM80-NG
1 499 kr
GDS® Tough-Dock™ + Single USB-A for Samsung Tab A7 Lite 8.7" RAM-GDS-DOCK-SAM80CDU
4 459 kr
Sold out
RAM® Short Bracket Adapter for Speakers & Microphones RAM-101-MIC1U
299 kr
RAM® Microphone with Steel Mounting Clip RAM-MIC-A01
1 529 kr
Sold out
GDS® Audio™ Amplified Speaker with PTT Breakout Feature RAM-SPEAK-A02
1 159 kr
Sold out
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short RAM-101-B-225B2U
Ball Icon C SIZE
Arm Icon SHORT ARM
1 289 kr
Sold out
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C RAM-GDS-CHARGE-V7CU
749 kr
Sold out

Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
