RAM® Brake/Clutch Reservoir Mount with Round Plate & 1/4"-20 Stud
Part#:RAM-B-174-202AU UPC:793442901782 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 069 kr

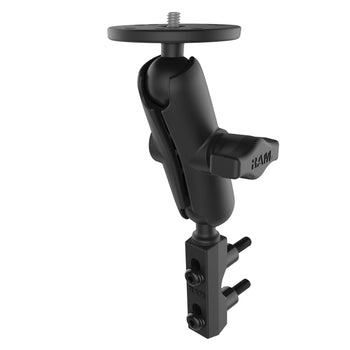

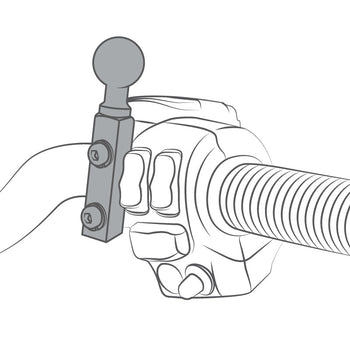

The RAM-B-174-202AU consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 2.5" diameter round base adapter that contains a 1/4"-20 male camera thread. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The included 1/4"-20 threaded steel stud, centered, with round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.231 kg

Consists of

that contain 1/4"-20 Female Threaded Hole
