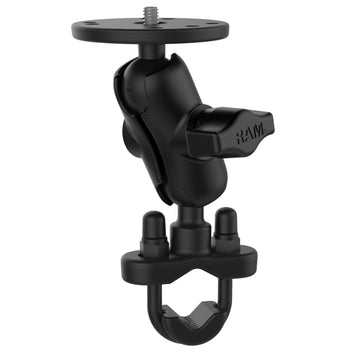

RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Short
RAM® Handlebar U-Bolt Double Ball Mount 1/4"-20 Threaded Stud - Short
B SIZE
SHORT ARM
929 kr
The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.
| hardware included |
(1) 1/4"-20 U-Bolt for .5" - 1" Rails |
| clamp range |
.5" - 1.25" diameter |
| socket to socket length |
1.75" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.268 kg |
Consists of
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size
RAM-B-231ZU
B SIZE
ARM
369 kr
B SIZE
ARM
that contain 1/4"-20 Female Threaded Hole
