RAM® Quick-Grip™ 15W Waterproof Wireless Charging Handlebar Mount
Part#:RAM-B-149Z-A-UN14W-V7M-1 UPC:793442932243 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon SHORT ARM
2 299 kr
  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

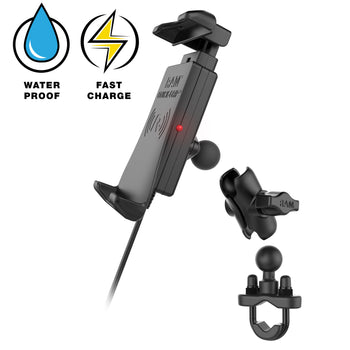

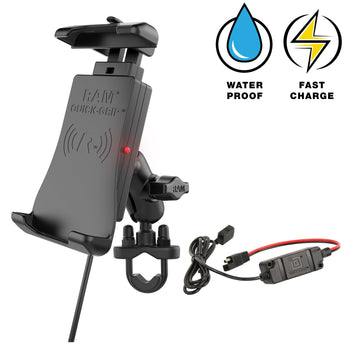

  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

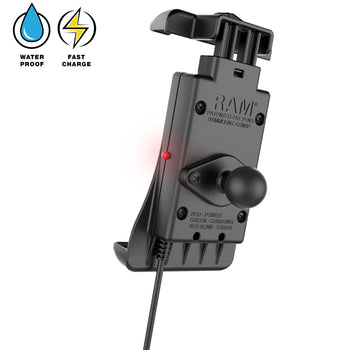

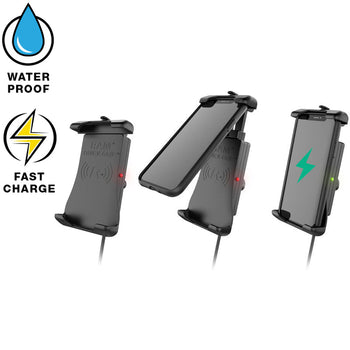

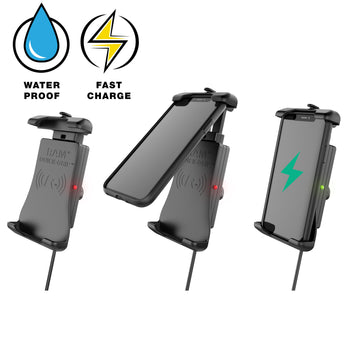

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
hardware included

(1) Safety Tether
(1) Silicon sleeve for USB waterproof connection

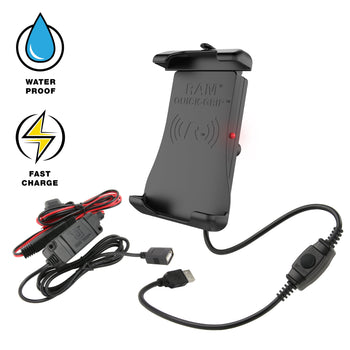

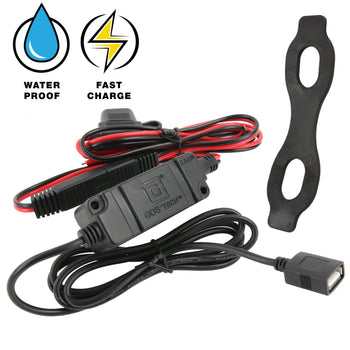

(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions

Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"
clamp range

.5" - 1.25" diameter
socket to socket length

1.75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
Stainless steel
packaging type

Retail Box
power specifications

Input Power:5V-2A 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
input connector

USB Type-A Male
input cable length

20" with optional 1.2M extension cable
operating temperature

0°C to +37.7°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty

1 year warranty
Weight

0.848 kg
Additional Information

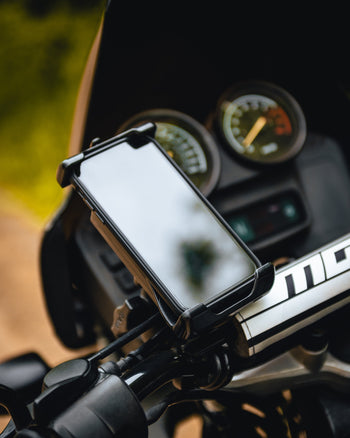

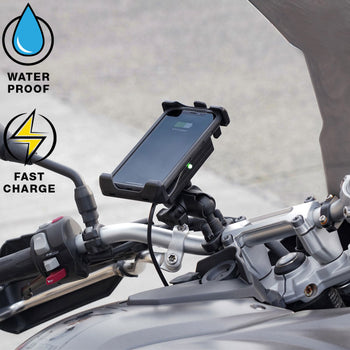

IMPORTANT: For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty. Click here for instructional video.


Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.


Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.


This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.

Consists of

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Charger RAM-HOL-UN14WB-V7M-1
Ball Icon B SIZE
Arm Icon ARM
1 899 kr
RAM® Double Socket Arm - B Size Short RAM-B-201U-A
Ball Icon B SIZE
Arm Icon SHORT ARM
329 kr
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size RAM-B-231ZU
Ball Icon B SIZE
Arm Icon ARM
369 kr

iPhone 11

iPhone 11 Pro

iPhone 11 Pro Max

iPhone 8

iPhone 8 Plus

iPhone SE

iPhone X

iPhone Xr

iPhone Xs

iPhone Xs Max

Evolve X

BV9900

BV9900 Pro

Pixel 3

Pixel 3 XL

Pixel 4

Pixel 4 XL

Pixel 5

Pixel 6

Pixel 6 Pro

Pixel 7

Pixel 7 Pro

Pixel 8

Pixel 8 Pro

Mate 20 Pro

P30 Pro

G6

G6+

G7 ThinQ

G8 ThinQ

G8S ThinQ

V30

V35 ThinQ

V40 ThinQ

V50 ThinQ

8 Sirocco

9 PureView

Phone 2

Galaxy Note 10

Galaxy Note 10 Plus

Galaxy Note 5

Galaxy Note 8

Galaxy Note 9

Galaxy S10

Galaxy S10 5G

Galaxy S10+

Galaxy S10e

Galaxy S20

Galaxy S20+

Galaxy S20 Ultra 5G

Galaxy S21 5G

Galaxy S21+ 5G

Galaxy S21 Ultra 5G

Galaxy S22 5G

Galaxy S22+ 5G

Galaxy S22 Ultra 5G

Galaxy S23

Galaxy S23+

Galaxy S23 Ultra

Galaxy S24

Galaxy S24+

Galaxy S24 Ultra

Galaxy S6

Galaxy S6 Edge

Galaxy S6 Edge+

Galaxy S7

Galaxy S7 Active

Galaxy S7 Edge

Galaxy S8

Galaxy S8+

Galaxy S8 Active

Galaxy S9

Galaxy S9+

Xperia XZ2

Xperia XZ2 Compact

Xperia XZ3

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3

Axon 10 Pro

Axon 9 Pro
