RAM® Tough-Tray™ Tablet Mount with U-Bolt Rail Base
Part#:RAM-B-149Z-234-6U UPC:793442939945 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 959 kr

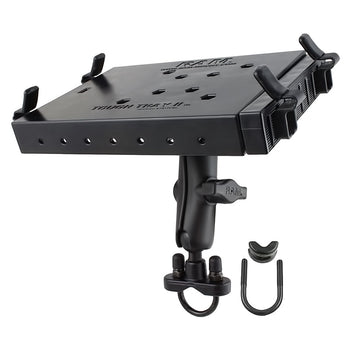

The RAM-B-149Z-234-6U consists of a medium Length, B-size arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and the RAM® Tough-Tray™ II Spring Loaded Netbook/Tablet Holder.
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

tray dimensions

Width Range: 8.56" - 11.2"
Side Arm Clamp Height: 2.75" max
Tray Depth: 6"
Tray Thickness: 1"

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.835 kg
