RAM® Aqua Box® ATV/UTV Rail Mount for Medium-Wide Devices
Part#:RAM-B-149Z-2-AQ6 UPC:793442916199 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 239 kr

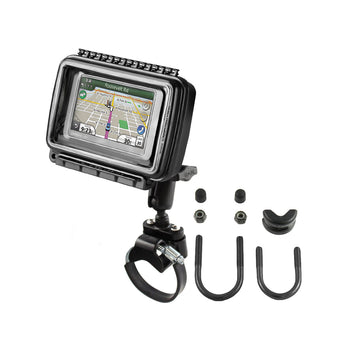

RAM UTV/ATV strap mount with medium/wide size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The strap base accommodates rails from 40mm (Min) to 80mm (Max) in diameter.

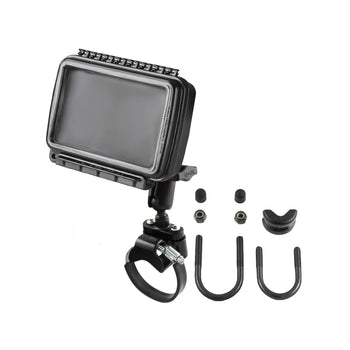

hardware included

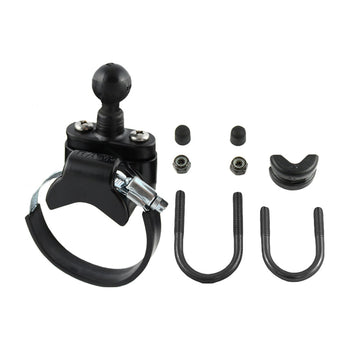

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer

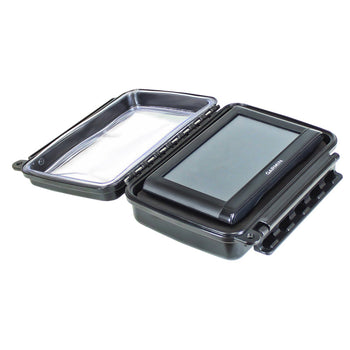

internal dimensions

Width: 6"
Height: 4"
Depth: 1.75"

clamp range

U-Bolt: .5" - 1.25" diameter

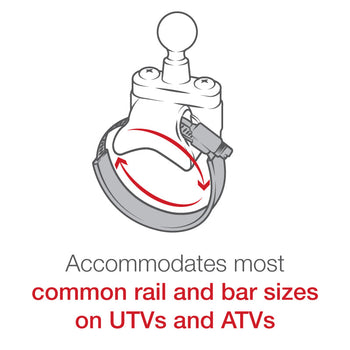

Strap Clamp: 1.57" - 3.15" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Retail Bag

Weight

0.748 kg

Cell Phones

Small Garmin nuvi Devices
