RAM® Double Ball Yoke Clamp Mount with Round Plate - Short
RAM® Double Ball Yoke Clamp Mount with Round Plate - Short
B SIZE
SHORT ARM
1 169 kr

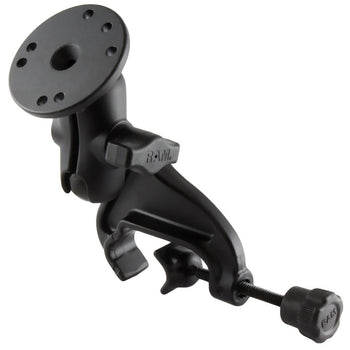

The RAM-B-121-A-202 consists of a yoke clamp base, SHORT length double socket arm and round 2.5" base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
| clamp range |
.625" - 1.25" |
| socket to socket length |
1.75" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Retail Bag |
| Weight |
0.308 kg |
