RAM® Universal Aviation Mount Kit
Part#:RAM-B-111-G1U UPC:793442916533 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 179 kr

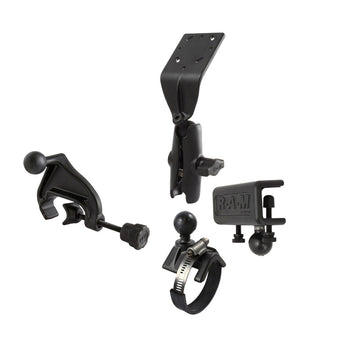

The RAM-B-111-G1U consists of a medium length B-size arm, our yoke clamp base, curved extension base, Large Strap Hose Clamp Base for Beechcraft Bananza Airplanes, and our Glare Shield Clamp base. The options provided here will allow you to mount one of our cradles for phones, tablets, or GPS units in most small aircrafts.
hardware included

Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
clamp range

Glare Shield Clamp: .625" max
Strap Hose Clamp: 2" - 3" diameter
Yoke Clamp: .625" - 1.25"
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.336 kg

Consists of

RAM® Double Ball Yoke Clamp Mount with Angled Extension Plate - Medium RAM-B-125U
Ball Icon B SIZE
Arm Icon MED ARM
1 229 kr
Sold out
RAM® Large Strap Hose Clamp Base for Beechcraft Bonanza Airplanes RAM-B-108B-STRAP40U
Ball Icon B SIZE
Arm Icon ARM
439 kr
RAM® Glare Shield Clamp Ball Base RAM-B-259U
Ball Icon B SIZE
Arm Icon ARM
639 kr

StreetPilot III

GPSMAP 172-250
