RAM® Strap Hose Clamp Ball Base 1.5" - 2.1"
RAM® Strap Hose Clamp Ball Base 1.5" - 2.1"
B SIZE
ARM
419 kr

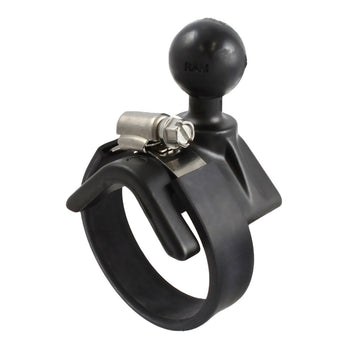

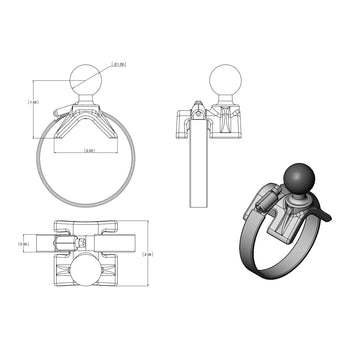

The RAM-B-108BU-HUM1 consists of a 1" diameter rubber ball connected at a right angle to a v-shaped base. The RAM-B-108BU-HUM1 accommodates rails from 1.5" to a maximum of 2.1" in diameter. To mount the RAM-B-108BU-HUM1 base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU-HUM1 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”.
hardware included |
(1) #28 Worm Drive Strap Clamp |
clamp range |
1.5" - 2.1" diameter |
ball size |
B Size (1") |
weight capacity |
Standard Use: 2 lbs |
materials |
Marine-grade aluminum |
packaging type |
Poly Bag |
Weight |
0.118 kg |
