RAM® Pod™ HD Reverse Vehicle Mount with 12" Pipe - GM Hardware
Part#:RAM-316-HDR-202-GMU UPC:793442006555 Patented
Ball Icon C SIZE
Arm Icon MED ARM
3 869 kr

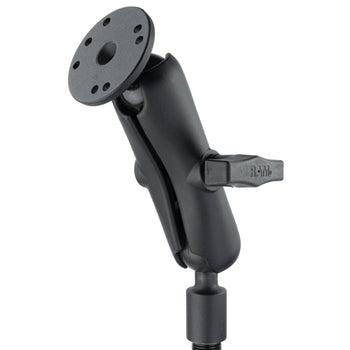

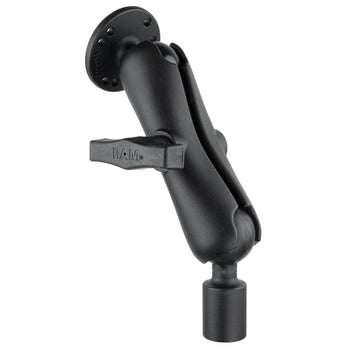

Blending the best of versatility, strength and installation ease the RAM POD HD™ is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM POD HD™ is an ideal solution for mounting tablets, small laptops and other similar devices. Requiring minimal space in the vehicle cab, it can be remove quickly without the use of tools. The versatility of the RAM POD HD™ makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet. This is the reverse configuration version which means the footing is better suited for right hand drive vehicles.

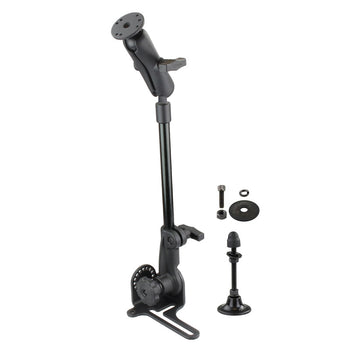

hardware included

Assembly Hardware
(1) 5/16"-18 x 1" Socket Cap Screw
(1) 5/16" Fender Washer
(1) 5/16" Split Lock Washer
(1) 5/16"-18 Steel Nut
Stabilizer Foot

product dimensions

Height Range: 18.75" - 25.75"

socket to socket length

4.66"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Powder coated steel
Marine-grade aluminum

packaging type

Poly Bag

Weight

1.945 kg
