RAM® Double Ball Mount for Sonim XP5plus with Speaker & Hardwire Bundle
Part#:RAM-138-S-SNM3PL-V7B1U UPC:793442585043 Patented
Ball Icon C SIZE
Arm Icon MED ARM
9 449 kr
  • Bundle for Sonim XP5plus includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication supports both versions with and without PTT control knobs
  • Powered RAM® EZ-Roll'r™ style form-fit dock provides a perfect fit for your device while keeping the device charged

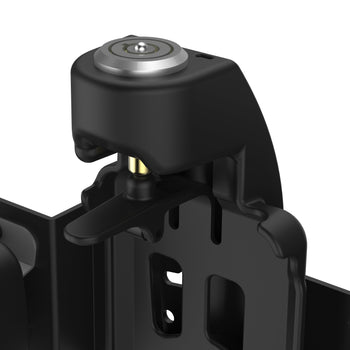

  • Key lock and RAM® Pin-Lock™ for theft deterrence
  • RAM® Components backed by lifetime warranty dock and electronics backed by a 3-year warranty

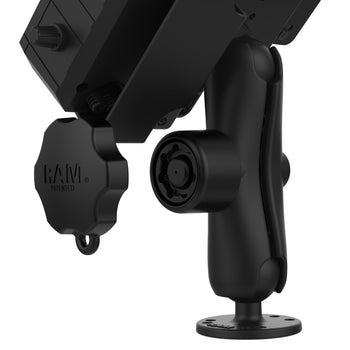

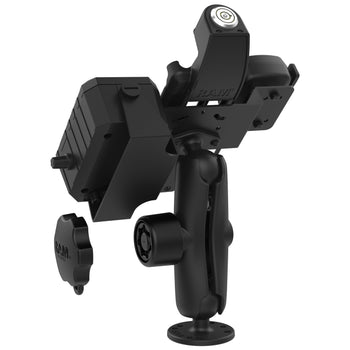

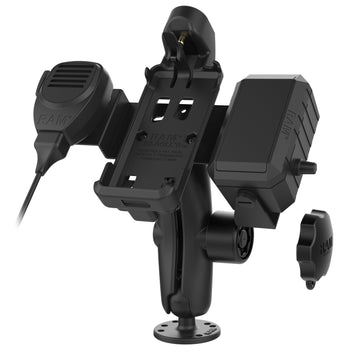

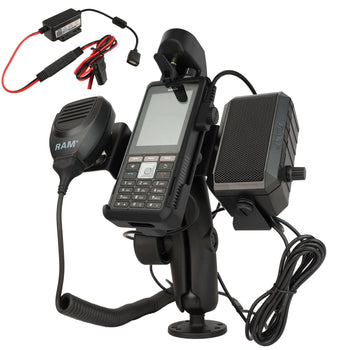

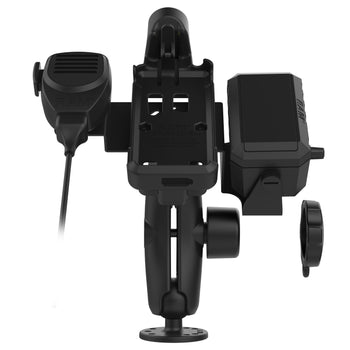

This Sonim XP5plus bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP5plus and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector, and includes key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. This dock will support both variations of the Sonim XP5plus with and without PTT control knobs.
hardware included

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
speaker specifications

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder-Coated Steel
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

Charger: Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

1.914 kg
Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

Consists of

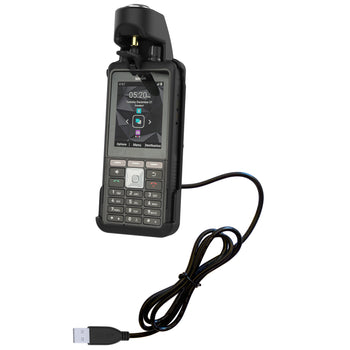

RAM® EZ-Roll'r™ Powered Locking Dock for Sonim XP5plus RAM-HOL-SNM3PLU
1 899 kr
Sold out

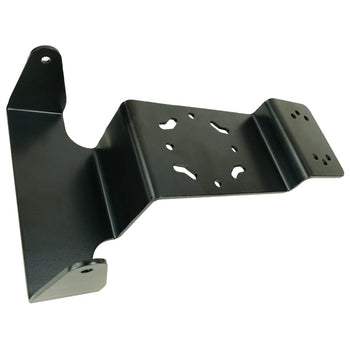

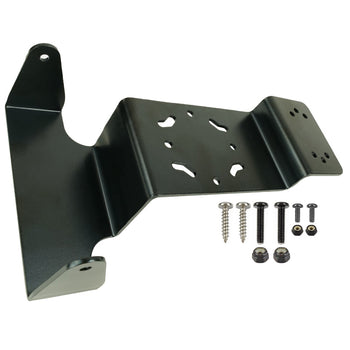

RAM® Bracket Adapter for PTT Speakers & Microphones RAM-101-MIC3U
559 kr
Sold out
RAM® Double Ball Mount with Diamond Plate Adapter - Medium RAM-138U
Ball Icon C SIZE
Arm Icon MED ARM
1 109 kr
RAM® Pin-Lock™ Security Knob for C Size Socket Arms RAP-S-KNOB5U
259 kr

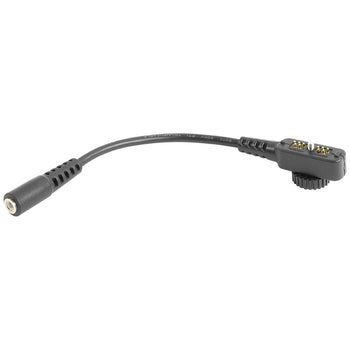

RAM® 3.5mm Audio Connector for Sonim SecureAudio RAP-CAB-SNM1U
679 kr
Sold out
GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector RAM-GDS-CHARGE-V7B1U
819 kr
Sold out

XP5plus
