RAM® Drill-Down Mount for Trimble TDS Recon
Part#:RAM-101U-B-TD1 UPC:793442904059
Ball Icon C SIZE
Arm Icon SHORT ARM
1 549 kr

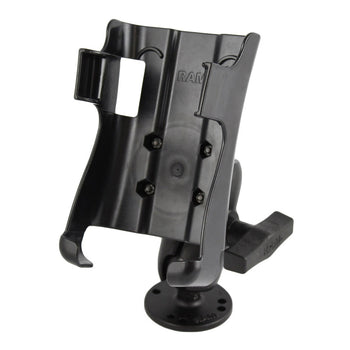

The RAM-101-B-TD1 TDS Recon PDA, flat surface drill down mount, consists of the 1.5 inch diameter ball and socket system with composite cradle and short arm. The back of the cradle is connected to a round base with ball. The ball gives the cradle the ability to connect to the RAM arm. This mount creates a ball and socket joint allowing you to move the cradle into many various viewing locations. All cables can stay connected to the TDS Ranger while in the RAM cradle.
hardware included

Assembly Hardware
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.513 kg

Consists of

RAM® Form-Fit Cradle for Trimble Recon RAM-HOL-TD1U
499 kr
Sold out
RAM® Universal Double Ball Mount with Two Round Plates - C Size Short RAM-101U-B
Ball Icon C SIZE
Arm Icon SHORT ARM
1 119 kr
Sold out

TDS Recon
