Build your mount
RAM® Double Ball Mount with 1/4"-20 Male Thread - C Size Short
RAM® Double Ball Mount with 1/4"-20 Male Thread - C Size Short
C SIZE
SHORT ARM
1 239 kr
- Double socket arm mount consists of round plate featuring the AMPS hole pattern for attachment to compatible drill-down device holders and round base with male 1/4"-20 thread steel stud

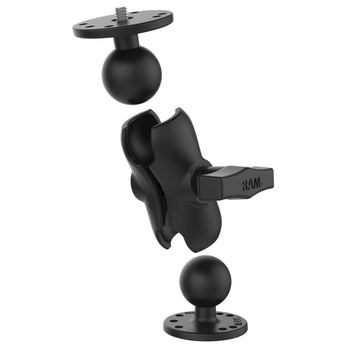

- Includes two round ball bases and C size short length double socket arm ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

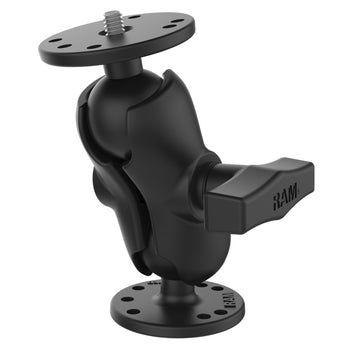

The RAM-101AU-B, powder coated marine grade aluminum mount, consists of a 3.56" double socket arm mount, one round 2.5" diameter base with the universal AMPS hole pattern and round base with a 1/4"-20 threaded steel stud. The round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. This is a drill down mount. Loosen the double socket arm to achieve near-infinite viewing angles.
| product dimensions |
Overall Height: 5.225" |
| socket to socket length |
2.5" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| plate size |
2.5" Diameter |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.408 kg |
Consists of
that contain 1/4"-20 Female Threaded Hole
