Build your mount
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
C SIZE
MED ARM
1 229 kr

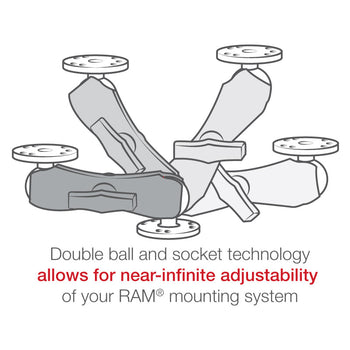

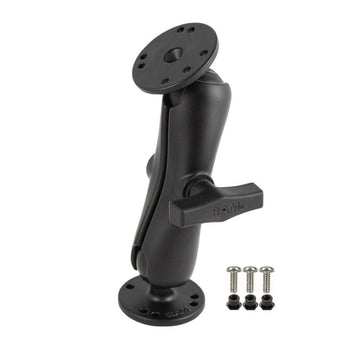

The RAM-101-G2U consists of a 6 inch double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-101-G2U mount to your optimum viewing position. Compatible with Garmin marine devices found under "compatibility".
| hardware included |
(3) #6-32 x 3/8" Machine Screws |

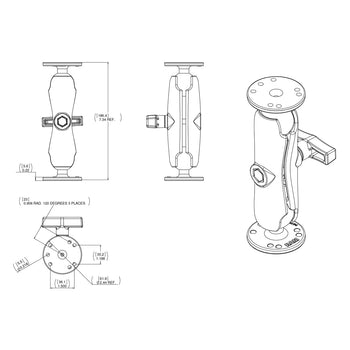

| product dimensions |
Overall Height: 7.35" |
| socket to socket length |
4.66" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| plate size |
2.5" Diameter |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.508 kg |
Consists of
Fishfinder 80-120
GPSMAP 172-555
