RAM® Twist-Lock™ Composite Suction Cup Mount with 1/4"-20 Camera Adapter
Part#:RAP-B-224-1-366 UPC:793442951008 Patented
Ball Icon B SIZE
Arm Icon MED ARM
859 kr

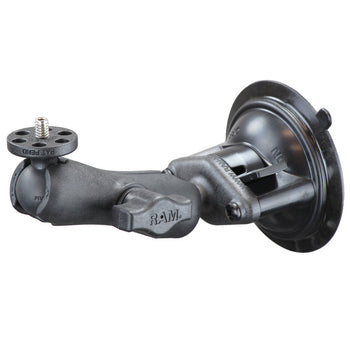

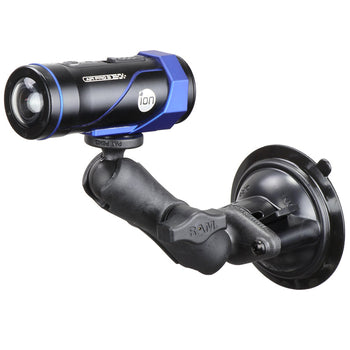

The RAP-B-224-1-366 consists of a 3.3" suction cup twist lock base, high strength composite double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware

suction size

3.3" Diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

High strength composite

packaging type

Retail Bag

Weight

0.227 kg

Additional Information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
