RAM® Tele-Pole™ with 8" & 9" Poles, Swing Arm & 75x75mm VESA Plate
Part#:RAM-VP-SW2-89-2461 UPC:793442924651 Patented
Ball Icon C SIZE
Arm Icon ARM
3 259 kr

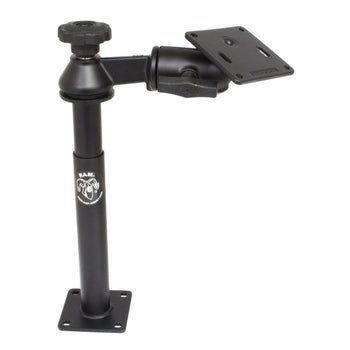

The RAM-VP-SW2-89-2461 consists of a 9" lower female Tele-Pole™, 8" upper male Tele-Pole™, single swing arm and 3.625" square base that contains the VESA hole pattern. The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles. The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.
hardware included

Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

product dimensions

Minimum Height: 16.3"
Maximum Height: 21.3"

hole pattern

Tele-Pole: 2.625" x 2.625"
VESA Plate: See Drawing

ball size

C Size (1.5")

materials

Powder coated steel
Marine-grade aluminum

packaging type

Box

Weight

2.948 kg

Består av

RAM® 9" Lower Pole RAM-VP-TBF9U
619 kr
RAM® 8" Upper Pole RAM-VP-TTM8U
909 kr
RAM® 6" Single Swing Arm with Swivel Socket RAM-VB-110-5NBU
Ball Icon C SIZE
Arm Icon ARM
979 kr
