GDS® Audio™ Amplified Speaker with PTT Breakout Feature
Part#:RAM-SPEAK-A02 UPC:793442012976
1 159 kr
  • PTT-enabled amplification speaker with independent adjustable volume knob
  • Includes hardwire power input cable, audio input cable and audio output cable
  • 99db max volume level
  • Backed by a 3-year warranty

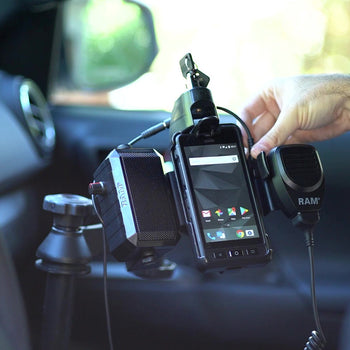

The GDS® Audio™ amplified audio breakout and speaker can be hardwired into the cab of your vehicle – with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.
hardware included

Mounting Bracket
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

speaker specifications

Independently adjustable volume knob
Max volume level: 99dB
8Ω / 10W rated speaker

packaging type

Box

input voltage

9-26VDC

power output

Peak Power: 10W
RMS Power: 8W

input connector

3.5mm TRRS connector, with a modified CTIA pin map for audio in/out

input cable length

1150mm long red/black power cable

output cable length

150mm long audio cable with 3.5mm mono plug jack

operating temperature

-20°C to +80°C

storage temperature

-40°C to +85°C

regulatory

Over current protection, short circuit protection and over volatage protection

certifications

FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a

Warranty

3 year warranty

Weight

0.422 kg
