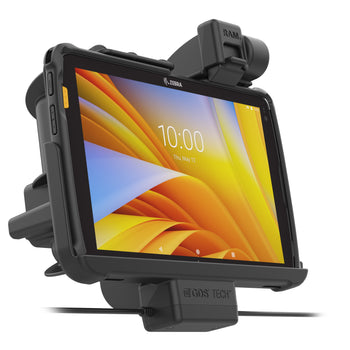

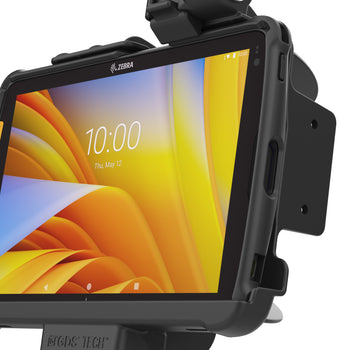

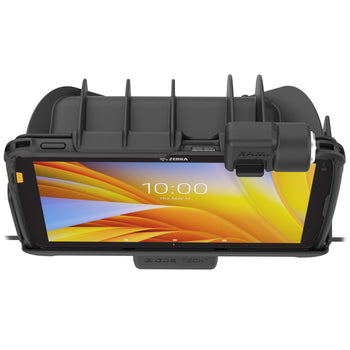

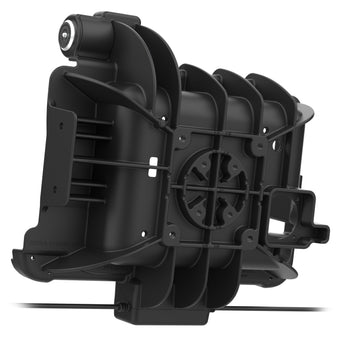

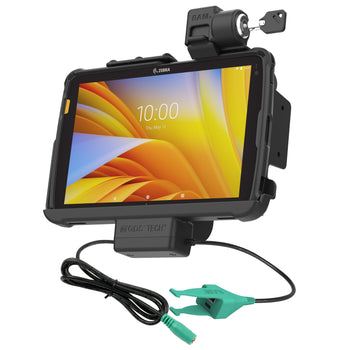

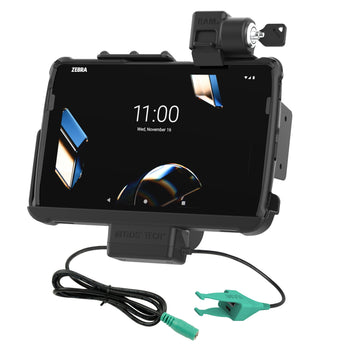

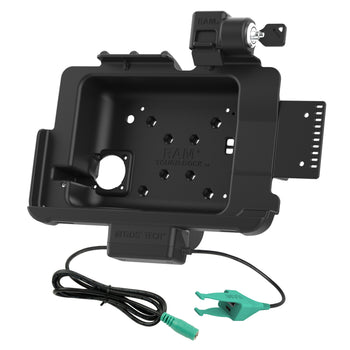

Locking RAM® Tough-Dock™ Power + USB-C & USB-A for Zebra ET4x 10" Tablet
Part#:RAM-HOL-ZE21PKL-CAU UPC:793442021695
4 279 kr
  • Locking RAM® Tough-Dock™ with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame via DC 5.5mm power jack, USB Type A, and USB Type-C connector for adding up to two peripherals MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Featuring data and charging capabilities and a key lock for theft deterrence, the RAM® Tough-Dock™ for Zebra ET40 & ET45 10" enterprise tablets with Rugged Frame allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A and USB Type-C cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device.
hardware included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input connector

5.5mm DC Connector

input cable length

1 Meter

output connector

USB 2.0 Type A
USB 2.0 Type-C

output cable length

190mm

peripheral output

900mAh (per port)

transfer speed

12Mbps

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

0.851 kg

Additional Information
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE21LU.

ET40 10" Tablet with Rugged Frame

ET45 10" Tablet with Rugged Frame
