RAM® Tough-Charge™ 15W Waterproof Wireless Charging Holder with Charger
Part#:RAM-HOL-UN12WB-V7M-1 UPC:793442944956 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon ARM
1 999 kr
  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

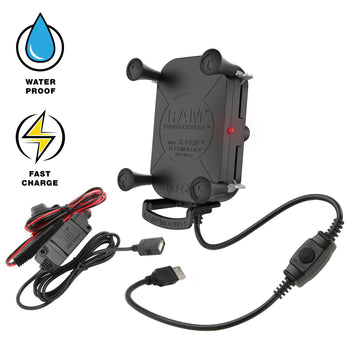

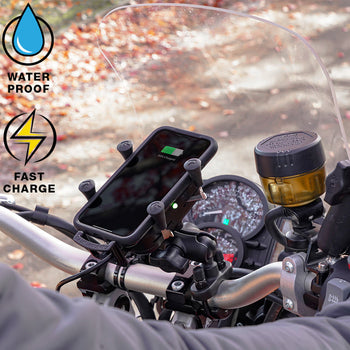

  • Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger attaches to B size double socket arms
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

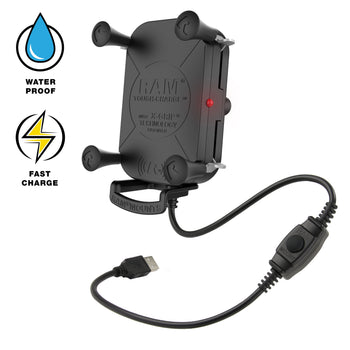

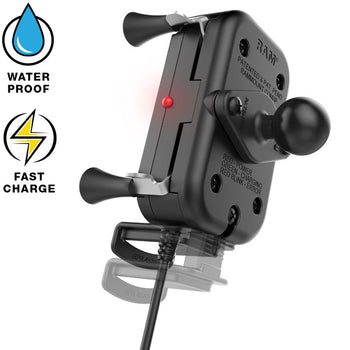

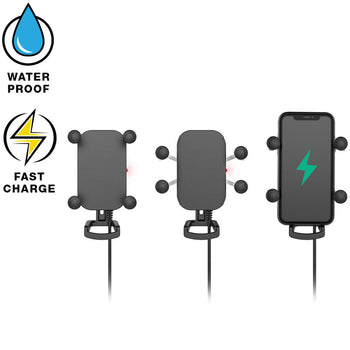

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi compatible wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi compatible wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.
hardware included

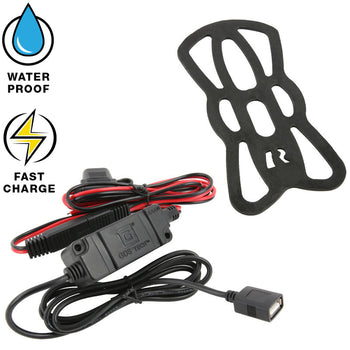

(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover

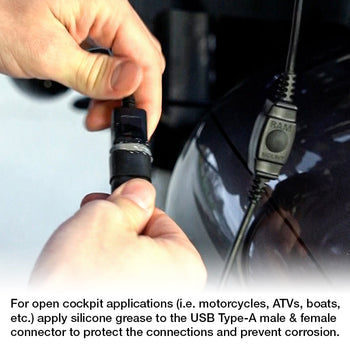

(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
holder dimensions

Width Range: 2.375" - 3.25"
Depth Range: .875" max
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
Stainless steel
packaging type

Retail Box
power specifications

Input Power:5V-2A 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
operating temperature

0°C to +37.7°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
Warranty

1 year warranty
Weight

0.599 kg
Additional Information
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.



MagSafe is a registered trademark of Apple, Inc., Cupertino, CA

Består av

RAM® Tough-Charge™ with X-Grip® 15W Waterproof Wireless Charging Holder RAM-HOL-UN12WB-1
Ball Icon B SIZE
Arm Icon ARM
1 599 kr

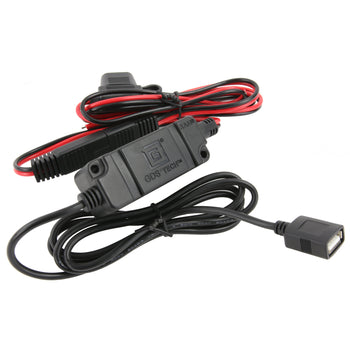

RAM® Hardwire Charger for Motorcycles RAM-CHARGE-V7MU
529 kr

iPhone 11

iPhone 11 Pro

iPhone 11 Pro Max

iPhone 8

iPhone 8 Plus

iPhone SE

iPhone X

iPhone Xr

iPhone Xs

iPhone Xs Max

Evolve X

BV9900

BV9900 Pro

Pixel 3

Pixel 3 XL

Pixel 4

Pixel 4 XL

Pixel 5

Pixel 6

Pixel 6 Pro

Pixel 7

Pixel 7 Pro

Pixel 8

Pixel 8 Pro

Mate 20 Pro

P30 Pro

G6

G6+

G7 ThinQ

G8 ThinQ

G8S ThinQ

V30

V35 ThinQ

V40 ThinQ

V50 ThinQ

8 Sirocco

9 PureView

Phone 2

Galaxy Note 10

Galaxy Note 10 Plus

Galaxy Note 5

Galaxy Note 8

Galaxy Note 9

Galaxy S10

Galaxy S10 5G

Galaxy S10+

Galaxy S10e

Galaxy S20

Galaxy S20+

Galaxy S20 Ultra 5G

Galaxy S21 5G

Galaxy S21+ 5G

Galaxy S21 Ultra 5G

Galaxy S22 5G

Galaxy S22+ 5G

Galaxy S22 Ultra 5G

Galaxy S23

Galaxy S23+

Galaxy S23 Ultra

Galaxy S24

Galaxy S24+

Galaxy S24 Ultra

Galaxy S6

Galaxy S6 Edge

Galaxy S6 Edge+

Galaxy S7

Galaxy S7 Active

Galaxy S7 Edge

Galaxy S8

Galaxy S8+

Galaxy S8 Active

Galaxy S9

Galaxy S9+

Xperia XZ2

Xperia XZ2 Compact

Xperia XZ3

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3

Axon 10 Pro

Axon 9 Pro
