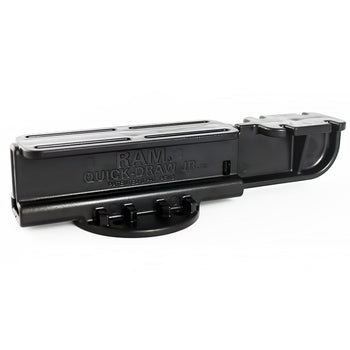

RAM® Quick-Draw™ Spring Loaded Holder
Part#:RAM-HOL-QD1U UPC:793442902352 Patented
789 kr

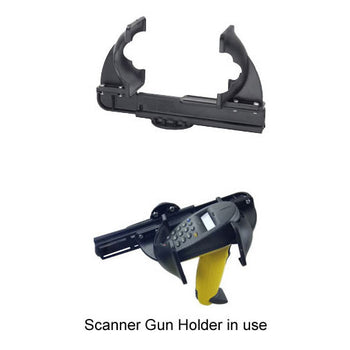

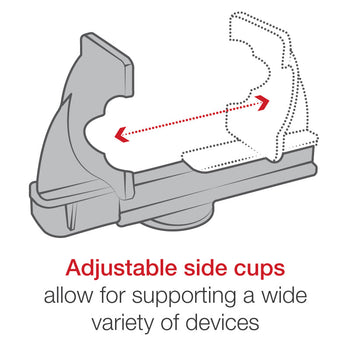

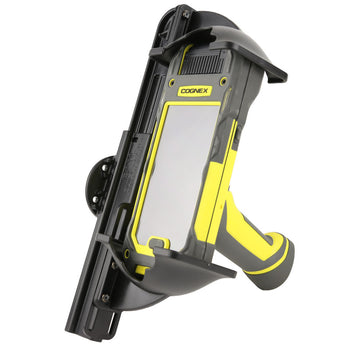

The RAM Quick-Draw™ Universal Holder accommodates most aftermarket scanner guns, handheld computers, and any other device that fits the dimensions. Adjustable side cups allow for supporting a wide variety of devices, and rugged spring-tension makes it suitable for any rugged environment, including forklifts. AMPS hole pattern on the back provides the ability to adapt to any patented RAM Double Ball & Socket Mounting Solution. Backed with a Lifetime Warranty. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

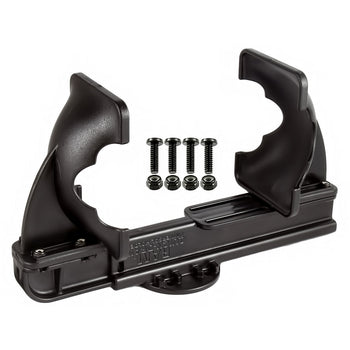

hardware included

Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts

internal dimensions

Height Range: 2" - 10.75"
Max Width: 2.625"
Max Depth: 4.25"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

Weight

0.304 kg

Består av

DataMan 8050

DataMan 8070

MX-1000

MX-1502

Falcon FX3

Falcon X4

Memor 1

Memor 10

Memor 20

PowerScan

Skorpio X3

Skorpio X4

Skorpio X5

CK75

Intermec CK3R

Intermec CK3X

Intermec CK70

Intermec CK71

Intermec CN70

Intermec CN70e

XG200

XG4

xTablet A680

MC9190-G

PA730

DS3500 Series

DS3608

LI3608/3678

LS3408

MC2200

MC2700

MC33XX Series

MC3200

MC9190-Z

MC9200

MC9300

MC9400

MT2000
