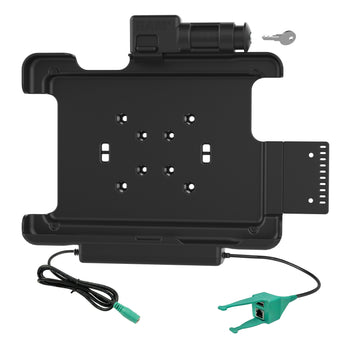

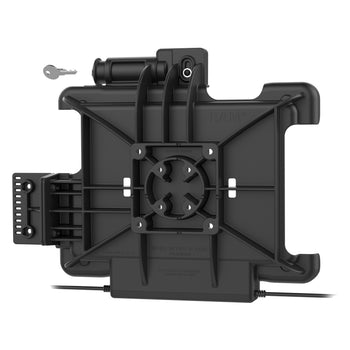

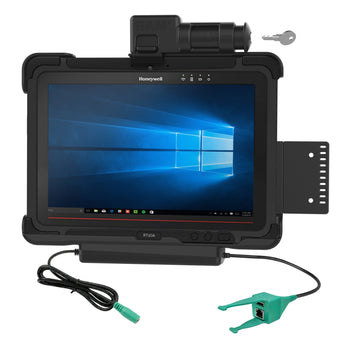

RAM® Key Locking Power + USB-A & RJ45 Dock for Honeywell RT10 Tablet
Part#:RAM-HOL-HON9PDKL-RJ45AU UPC:793442018763
5 099 kr
  • Key locking powered dock featuring GDS® Technology™ for data and charging capabilities for the Honeywell RT10 rugged tablet via DC 5.5mm power jack and dual USB Type-A & RJ45 cable
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked Dock accommodates tablet add-ons such as scanner, hand strap, and extended battery pack tablet scanning works while tablet is docked
  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
The RAM® Key Locking Power + USB-A & RJ45 Dock for Honeywell RT10 Tablet (RAM-HOL-HON9PDKL-RJ45AU) supports an ethernet connect and up one peripheral while keeping the device charged through the pogo pin contacts when the device is docked and features a key lock for theft deterrence. Power is provided by connecting to the dock's 5.5mm DC power jack while ethernet capabilities and peripheral support is provided by the built-in dual USB Type-A & RJ45 cable. The dock also allows the tablet's scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, hand strap, and extended battery pack. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
hardware included

(2) Keys
(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(8) Small Cable Ties
(2) Large Cable Ties
(1) USB Type A Cable Clamp Housing

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input connector

Power: 5.5mm DC Connector
Data: USB Type A & RJ45

output connector

USB 2.0 Type A & RJ45 Female

peripheral output

900mAh

transfer speed

12Mbps

Warranty

3 year warranty

Weight

0.983 kg

RT10 Rugged Tablet
