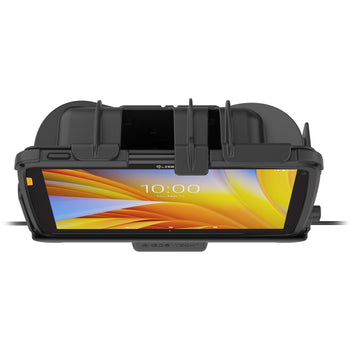

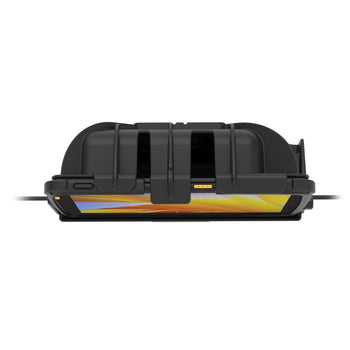

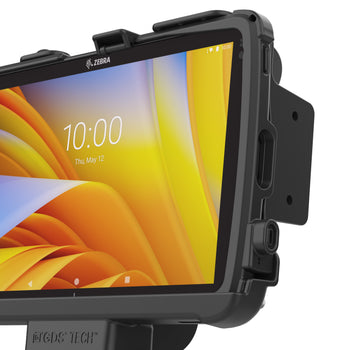

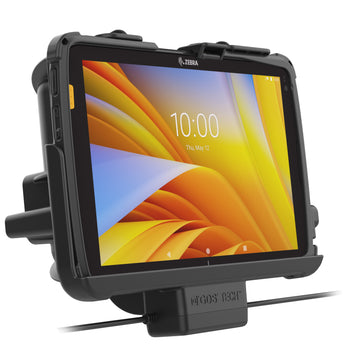

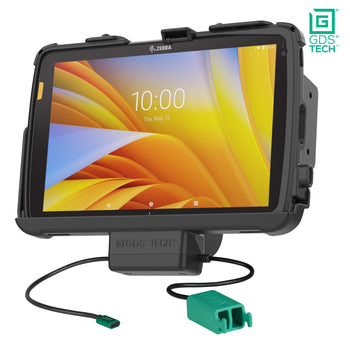

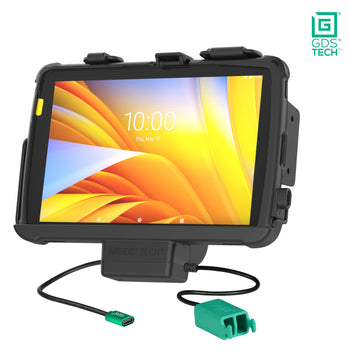

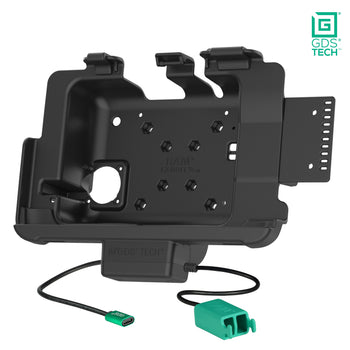

GDS® Power + Dual USB Dock for Zebra ET4x 10" Tablet with IntelliSkin®
Part#:RAM-GDS-DOCK-ZE21PD2U UPC:793442919619 Patented & Pats. Pend.
4 019 kr
  • Powered dock featuring GDS® Technology™ and RAM® EZ-Roll'r™ with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked

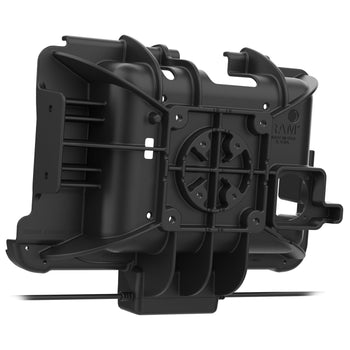

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

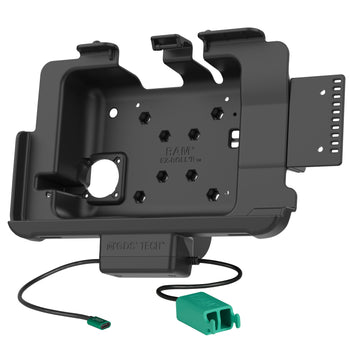

Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock for Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

USB Type-C
input cable length

215mm
output connector

(2) USB 2.0 Type A
output cable length

215mm
peripheral output

900mAh (per port)
transfer speed

12Mbps
certifications

RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty

3 year warranty
Weight

0.712 kg
Additional Information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.

ET40 10" Tablet with IntelliSkin® Next Gen

ET45 10" Tablet with IntelliSkin® Next Gen
