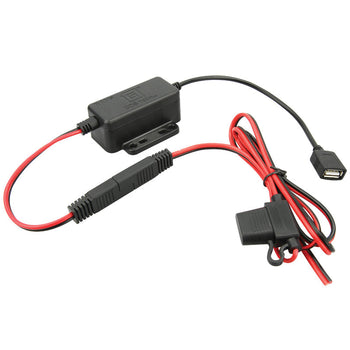

GDS® Modular 30-64V Hardwire Charger with Female USB Type A Connector
Part#:RAM-GDS-CHARGE-V8BU UPC:793442012426
869 kr
  • Hardwire charger includes USB Type-A female connector 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

30-64VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.143 kg
Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
