GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A7 Lite 8.7"
Part#:RAM-GDS-101B2-SAM80CP-V7CU UPC:793442018350
Ball Icon C SIZE
Arm Icon SHORT ARM
7 079 kr

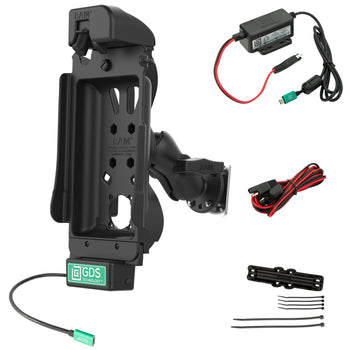

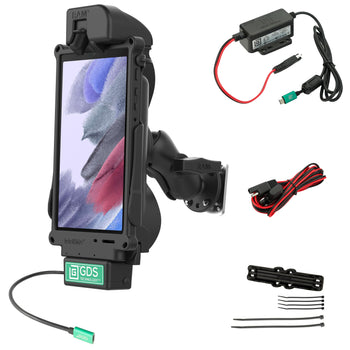

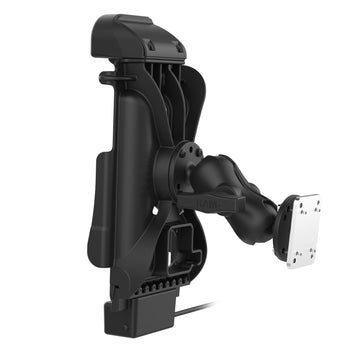

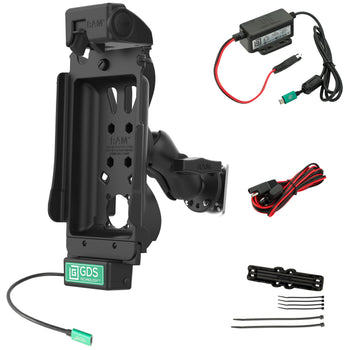

  • Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball, backing plate adapter and cable clamp
  • Dock features GDS® Technology™ for charging capabilities uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty
Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount with short arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
output voltage

5-9VDC*
input connector

Female USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

150mm
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty

3 year warranty
Weight

1.491 kg

Består av

IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7” RAM-GDS-SKIN-SAM80-NG
1 499 kr

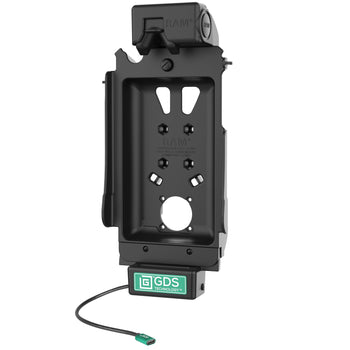

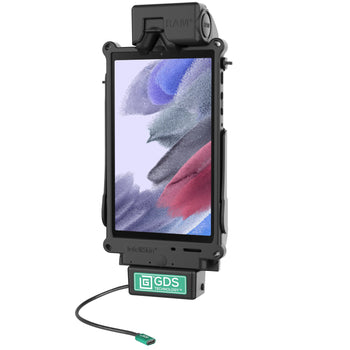

GDS® Tough-Dock™ for Samsung Tab A7 Lite 8.7" RAM-GDS-DOCK-SAM80CPU
3 249 kr
Beställningsvara
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short RAM-101-B-225B2U
Ball Icon C SIZE
Arm Icon SHORT ARM
1 289 kr
Beställningsvara
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C RAM-GDS-CHARGE-V7CU
749 kr
Beställningsvara
GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
119 kr

Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
