RAM® Offset Reservoir Cover Double Ball Mount
Part#:RAM-B-183U UPC:793442921889
Ball Icon B SIZE
Arm Icon MED ARM
989 kr

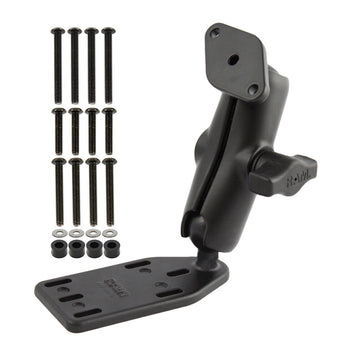

The RAM-B-183U consists of a brake/clutch reservoir cover plate (1" ball off-set), STANDARD length double socket arm and diamond base adapter. The base fits cleanly over your existing brake/clutch reservoir cover with the 1" ball offset. Made of die cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate shaped similarly to the cover that mounts above the cover using the covers screw holes and longer screws. The kit actually comes with 3 sets of screws of differing lengths. The center 2 slots are 2 7/16 inches center to center and are just under a 1/2 inch long.
hardware included

(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) Nylon Spacers
(4) M4 Stainless Steel Washers

product dimensions

Overall Height: 5"

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.316 kg

Additional Information
This mount is not compatible with the 2016 BMW R1200RT.

Består av

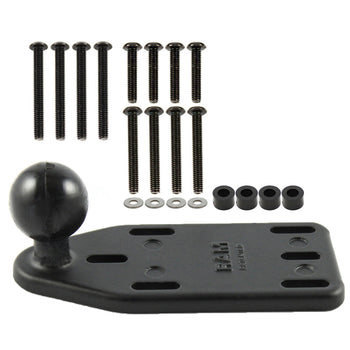

RAM® Offset Reservoir Cover Ball Base RAM-B-346U
Ball Icon B SIZE
Arm Icon ARM
489 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
179 kr
