RAM® X-Grip® Large Phone Mount with Motorcycle Fork Stem Base
Part#:RAM-B-176-A-UN10U UPC:793442952999 Patented
Ball Icon B SIZE
Arm Icon SHORT ARM
1 429 kr
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone includes optional device tether for peace of mind during rugged use
  • Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

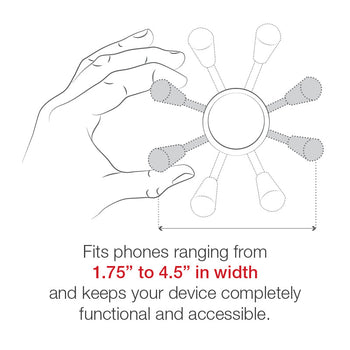

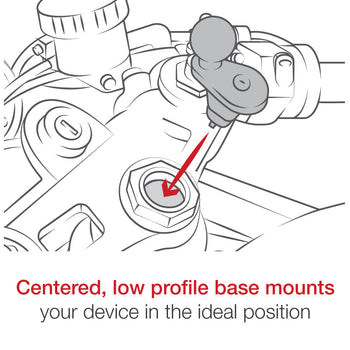

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN10U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps

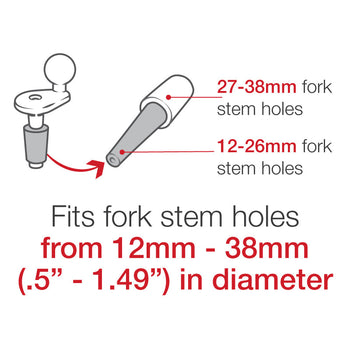

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

holder dimensions

Width Range: 1.75" - 4.5"
Depth Range: .875" max

socket to socket length

1.75"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.318 kg

Består av

RAM® Double Socket Arm - B Size Short RAM-B-201U-A
Ball Icon B SIZE
Arm Icon SHORT ARM
329 kr
RAM® Motorcycle Fork Stem Ball Base RAM-B-342U
Ball Icon B SIZE
Arm Icon ARM
409 kr
