RAM® Double Ball Mount with Garmin Fishfinder #6-32 Hardware
Part#:RAM-101-G2U UPC:793442000645
Ball Icon C SIZE
Arm Icon MED ARM
1 229 kr

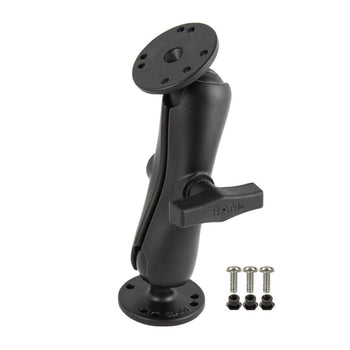

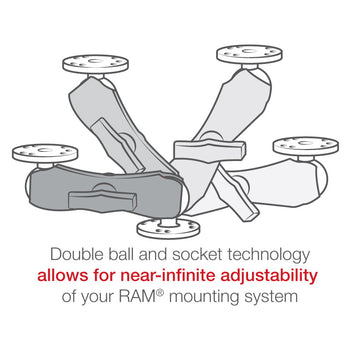

The RAM-101-G2U consists of a 6 inch double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both ends of the double socket arm. With a twist of the arm knob, you can move the RAM-101-G2U mount to your optimum viewing position. Compatible with Garmin marine devices found under "compatibility".
hardware included

(3) #6-32 x 3/8" Machine Screws
(3) #6-32 Nut Inserts
product dimensions

Overall Height: 7.35"
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.508 kg

Består av

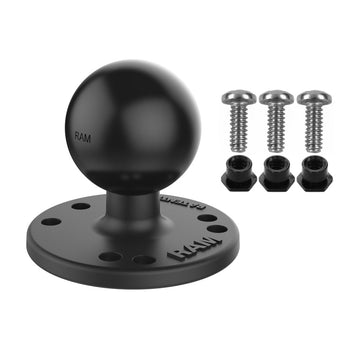

RAM® Ball Adapter with #6-32 Hardware for Garmin Fishfinders RAM-202-G2U
Ball Icon C SIZE
Arm Icon ARM
419 kr
RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
559 kr
Beställningsvara
RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
349 kr
Beställningsvara

Fishfinder 80-120

GPSMAP 172-555
